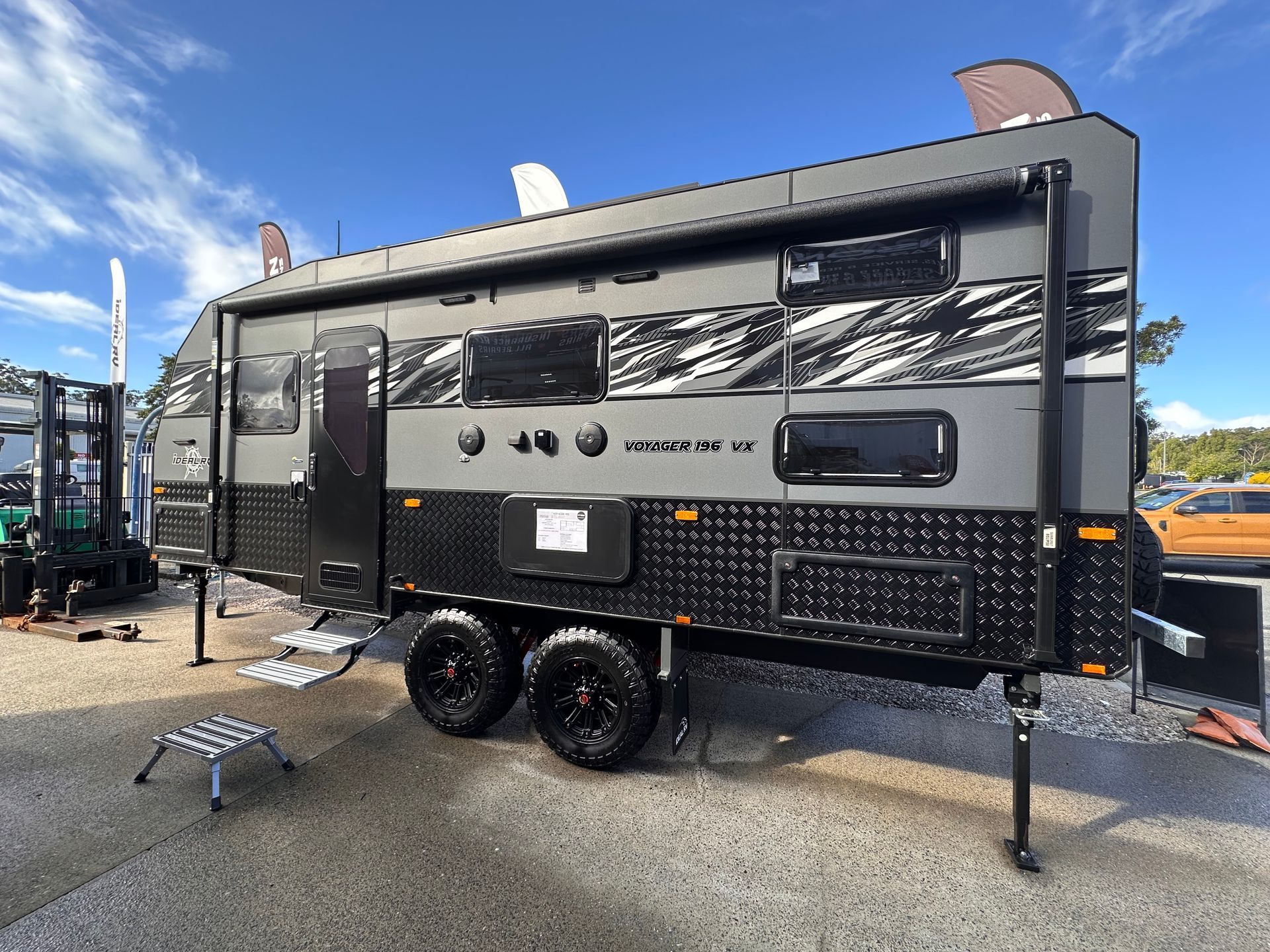

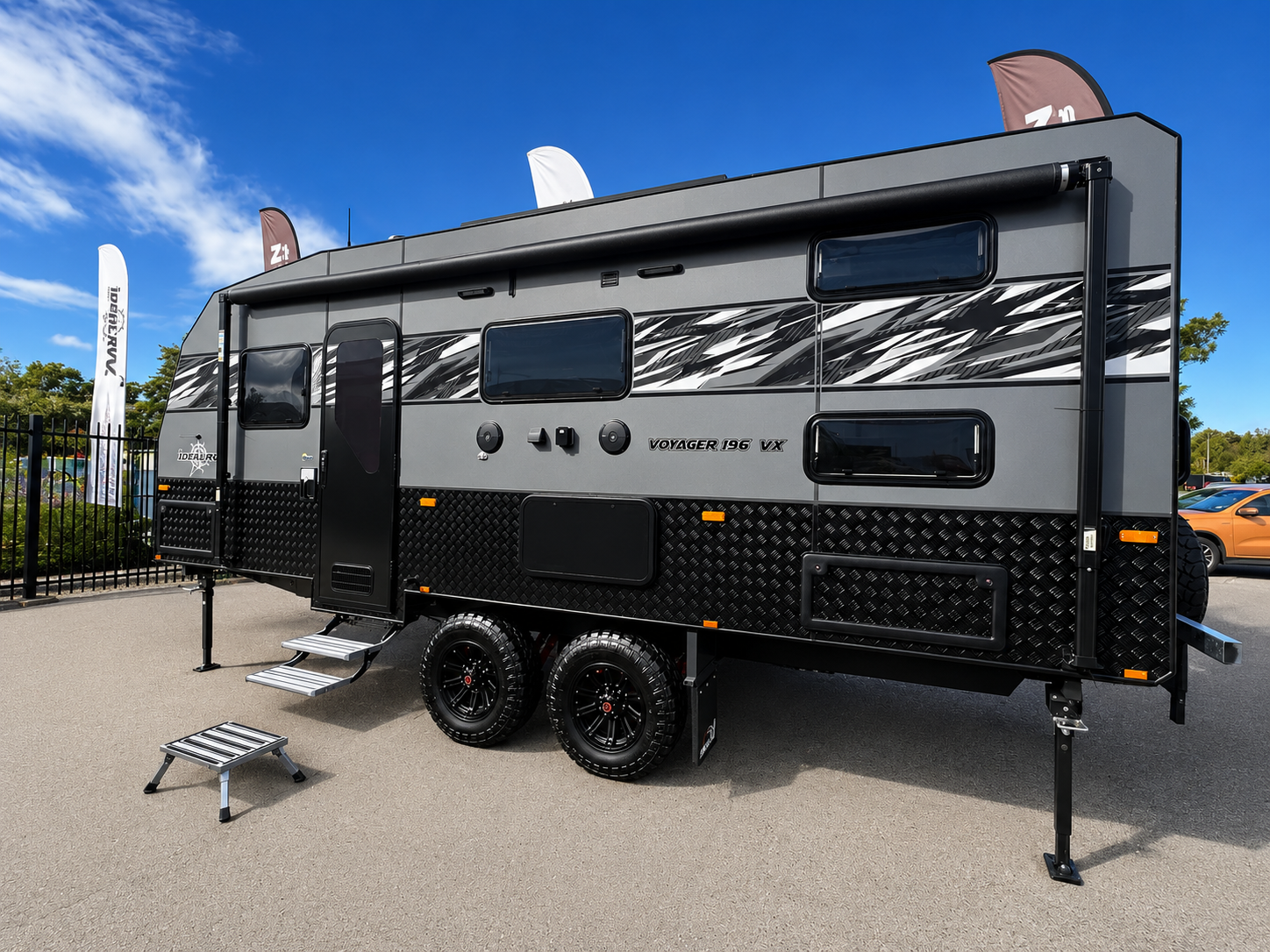

Ideal Voyager 19'6

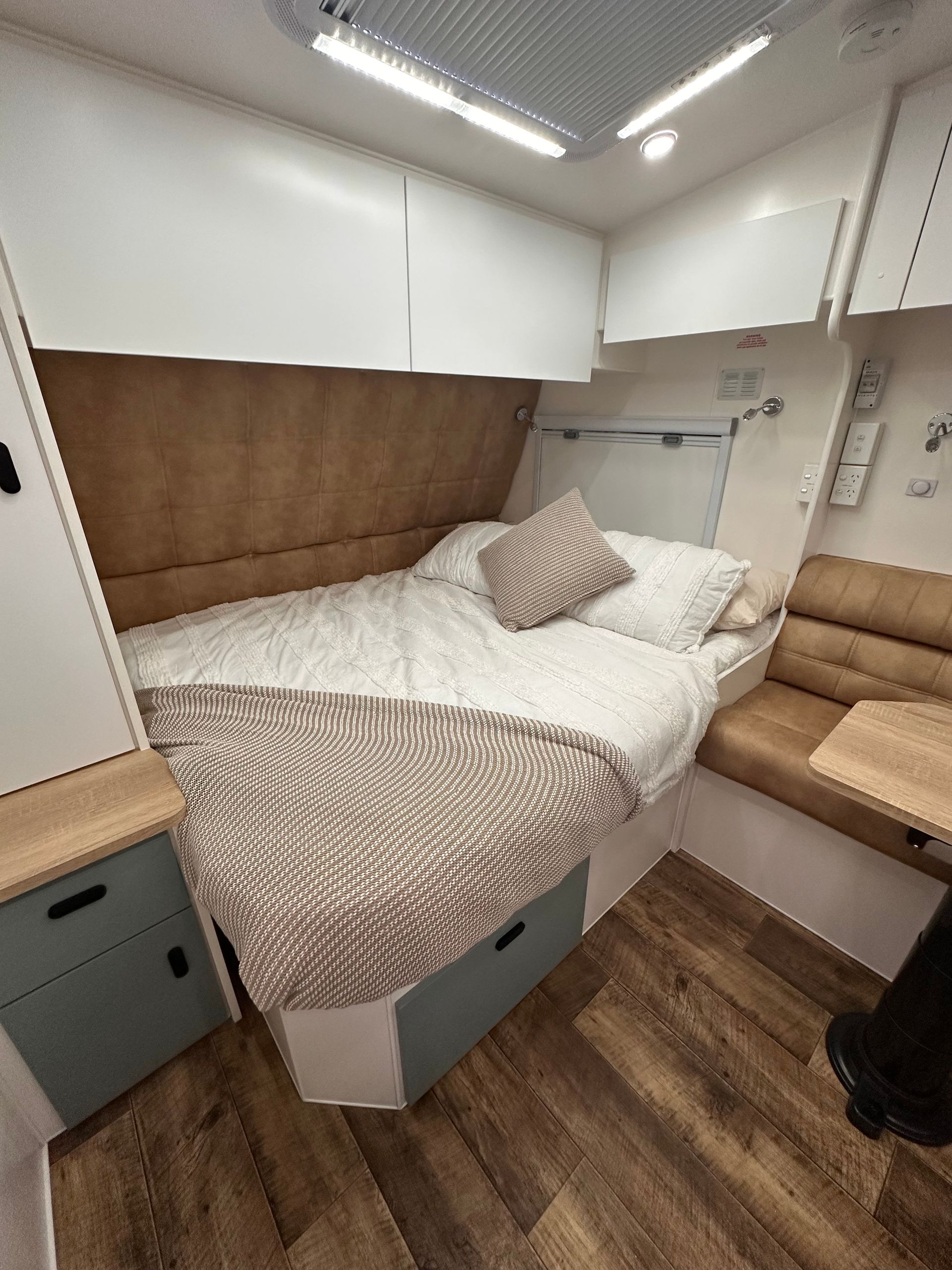

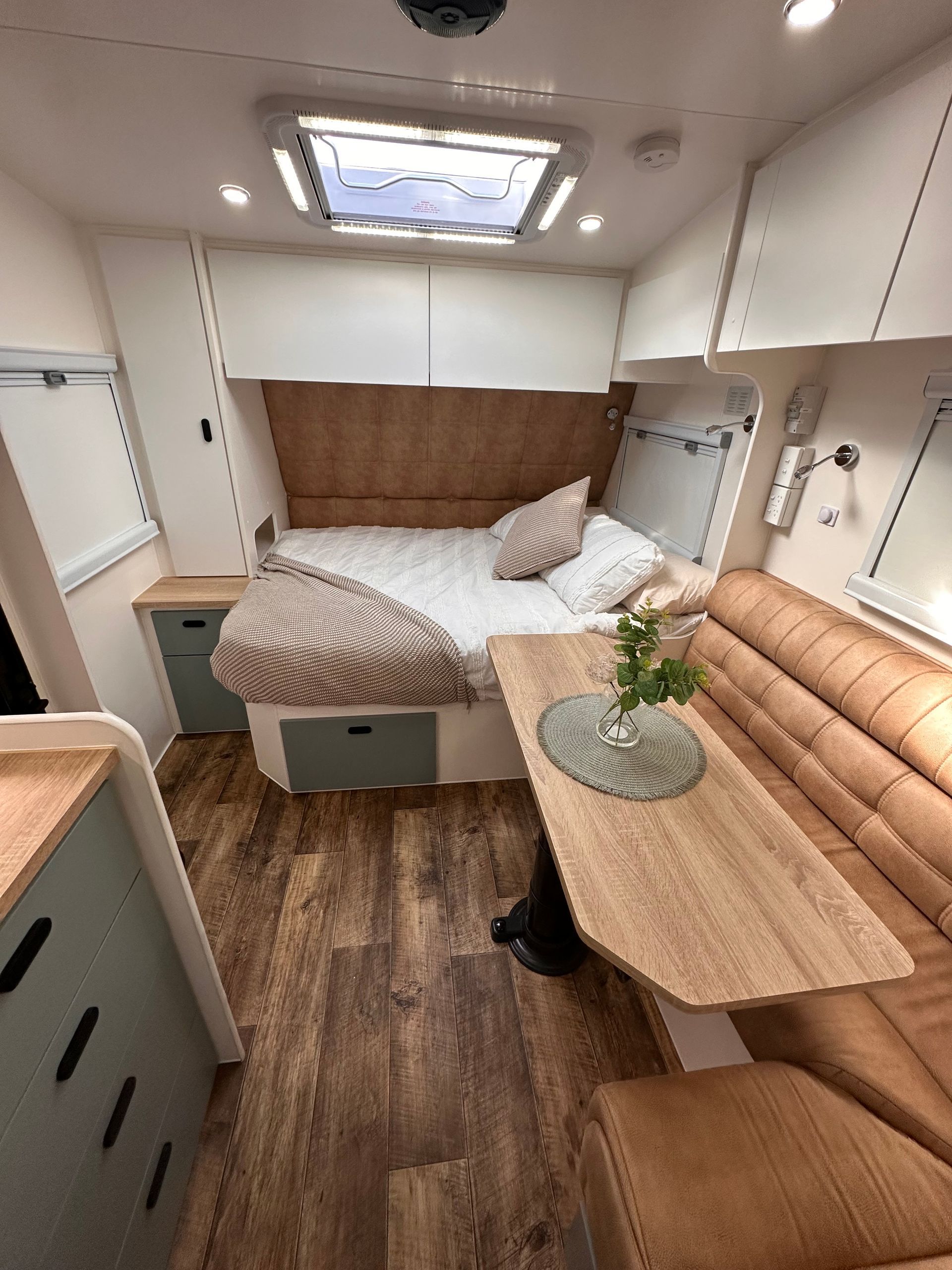

BEDROOM

Queen island bed, east west storage underneath (no lift up)

Upholstered full bed head

Mattress queen pillowtop

Single robes/ single bedside table w/storage

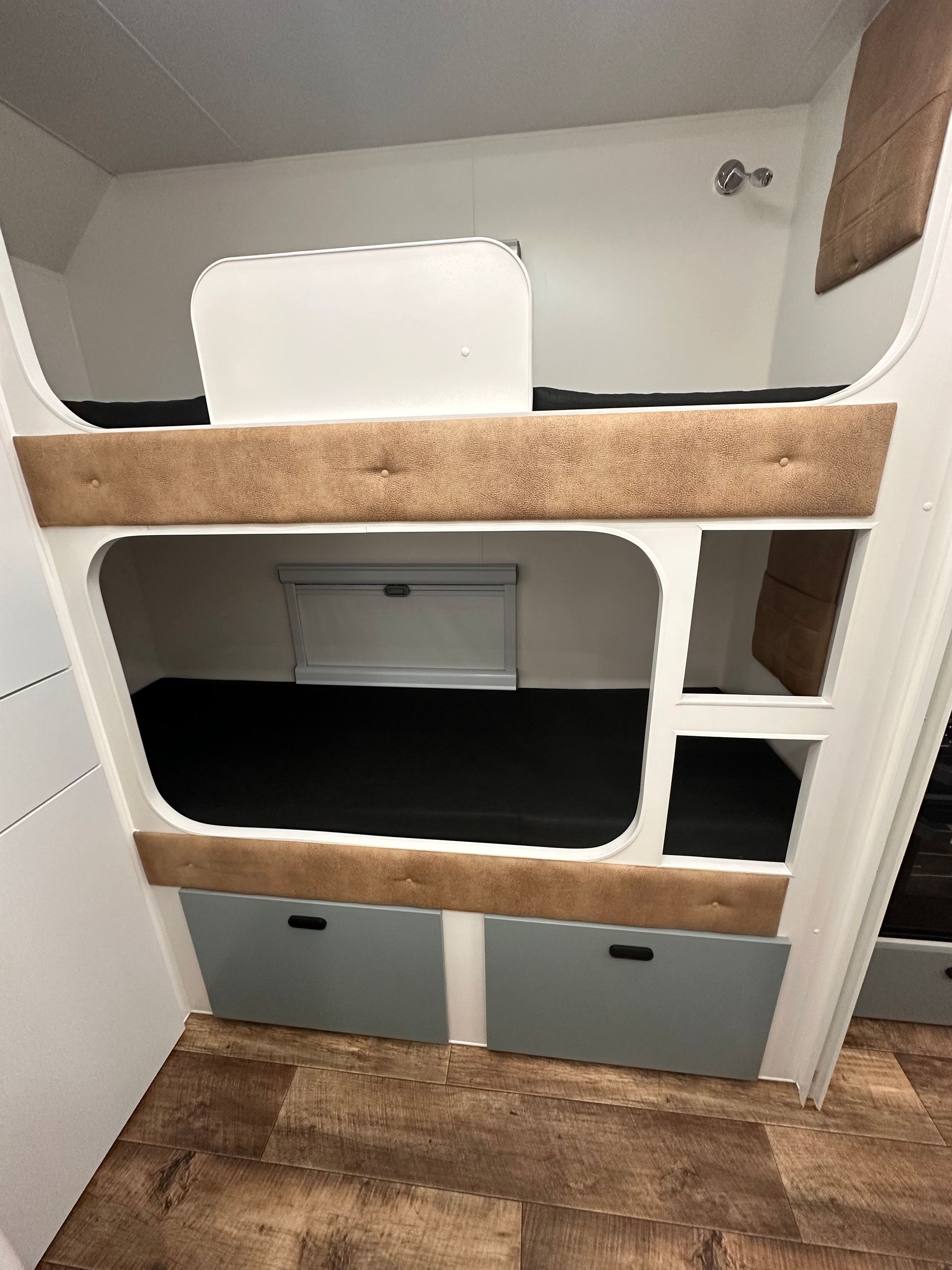

3 or 2 bunk option

Under bunk storage

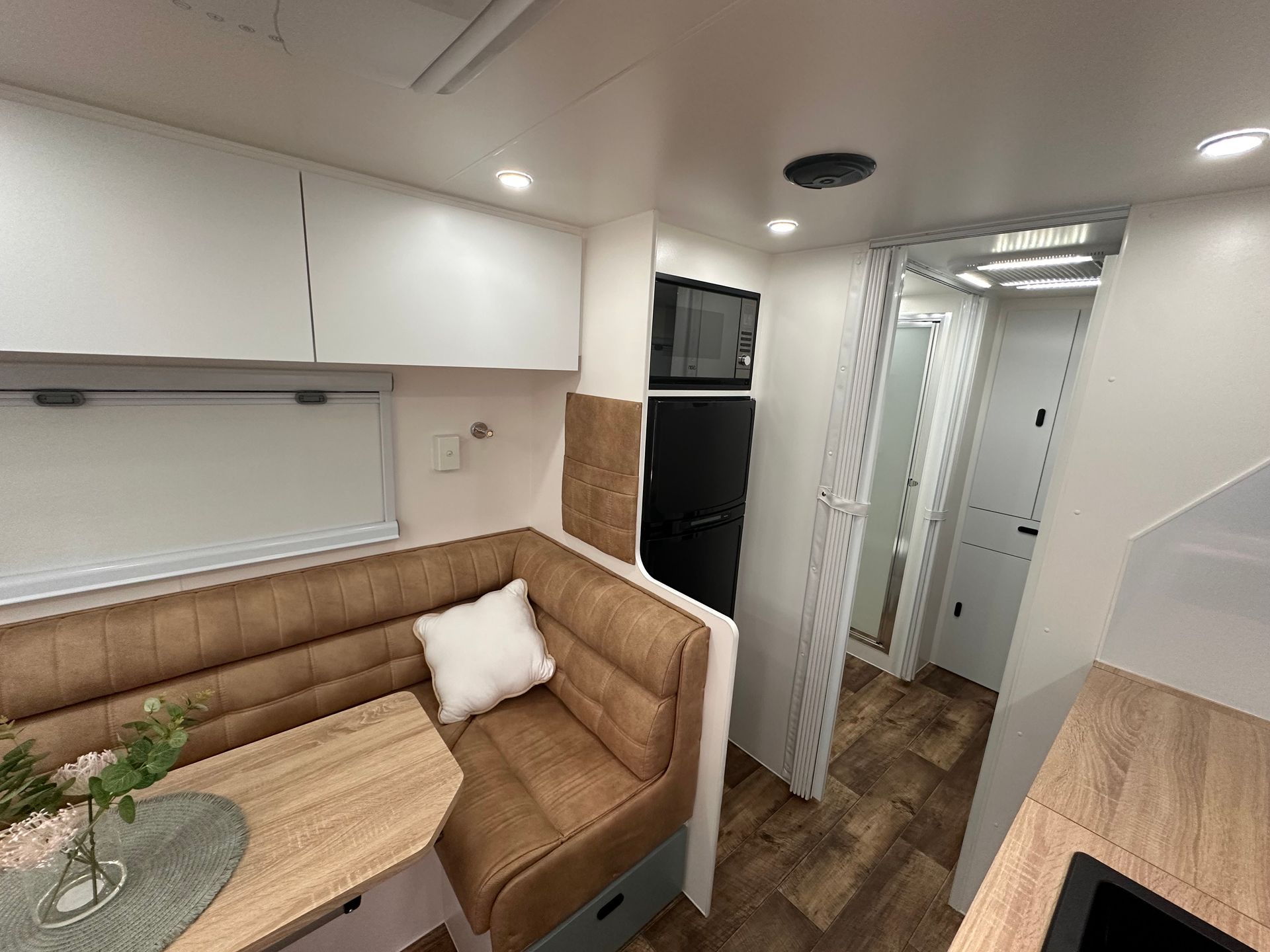

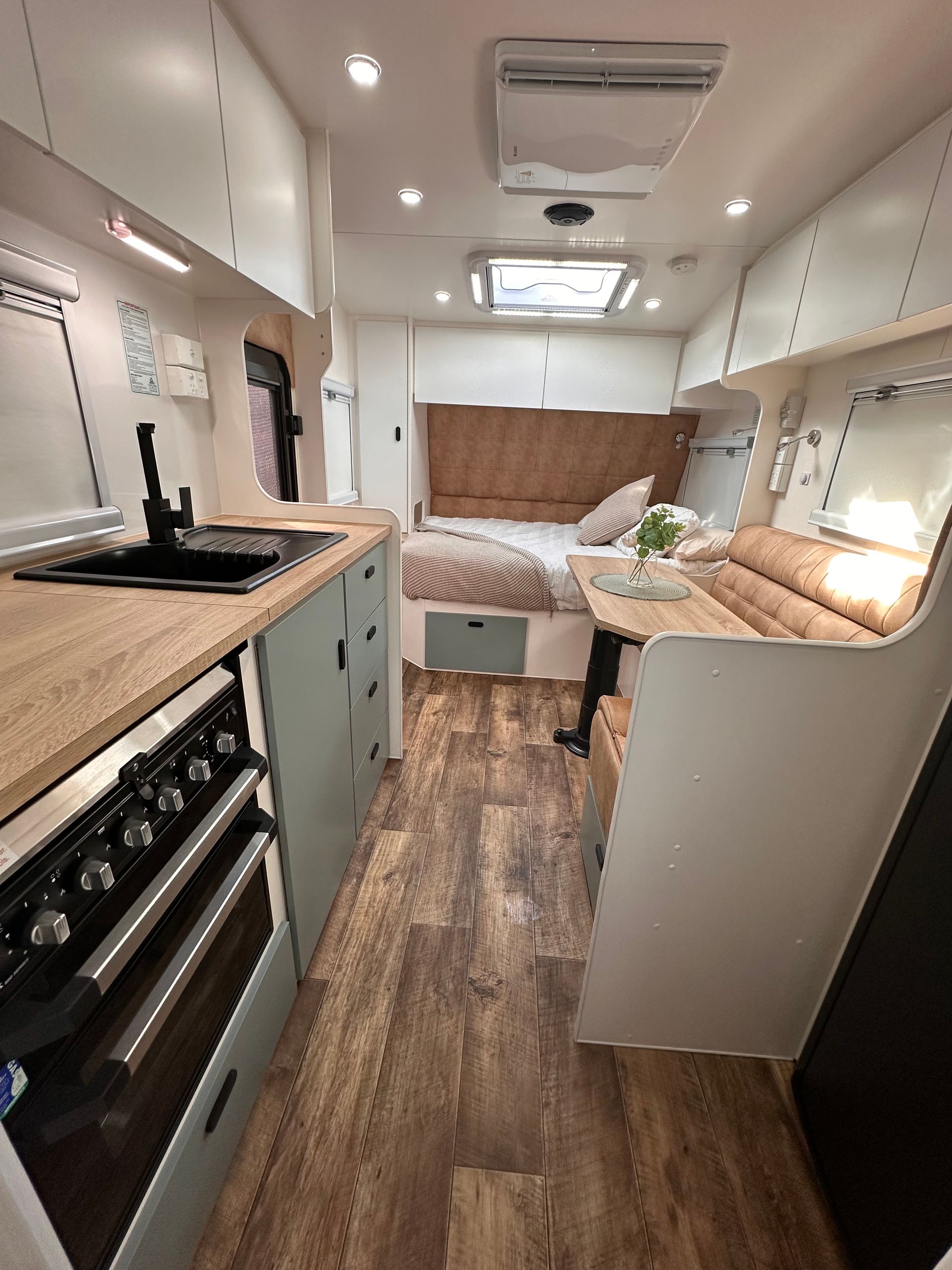

KITCHEN / LIVING

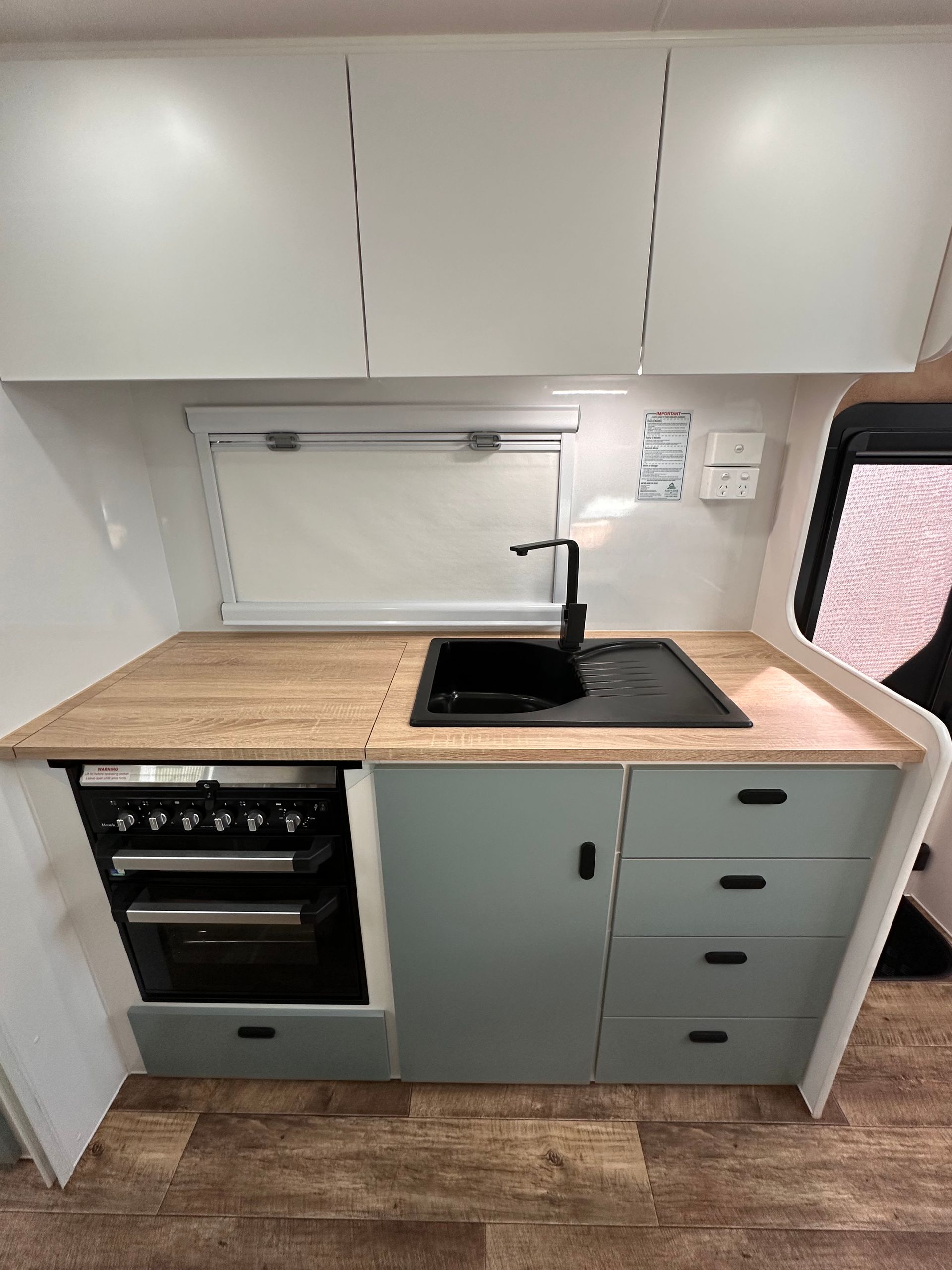

Straight kitchen bench

Slide out pantry

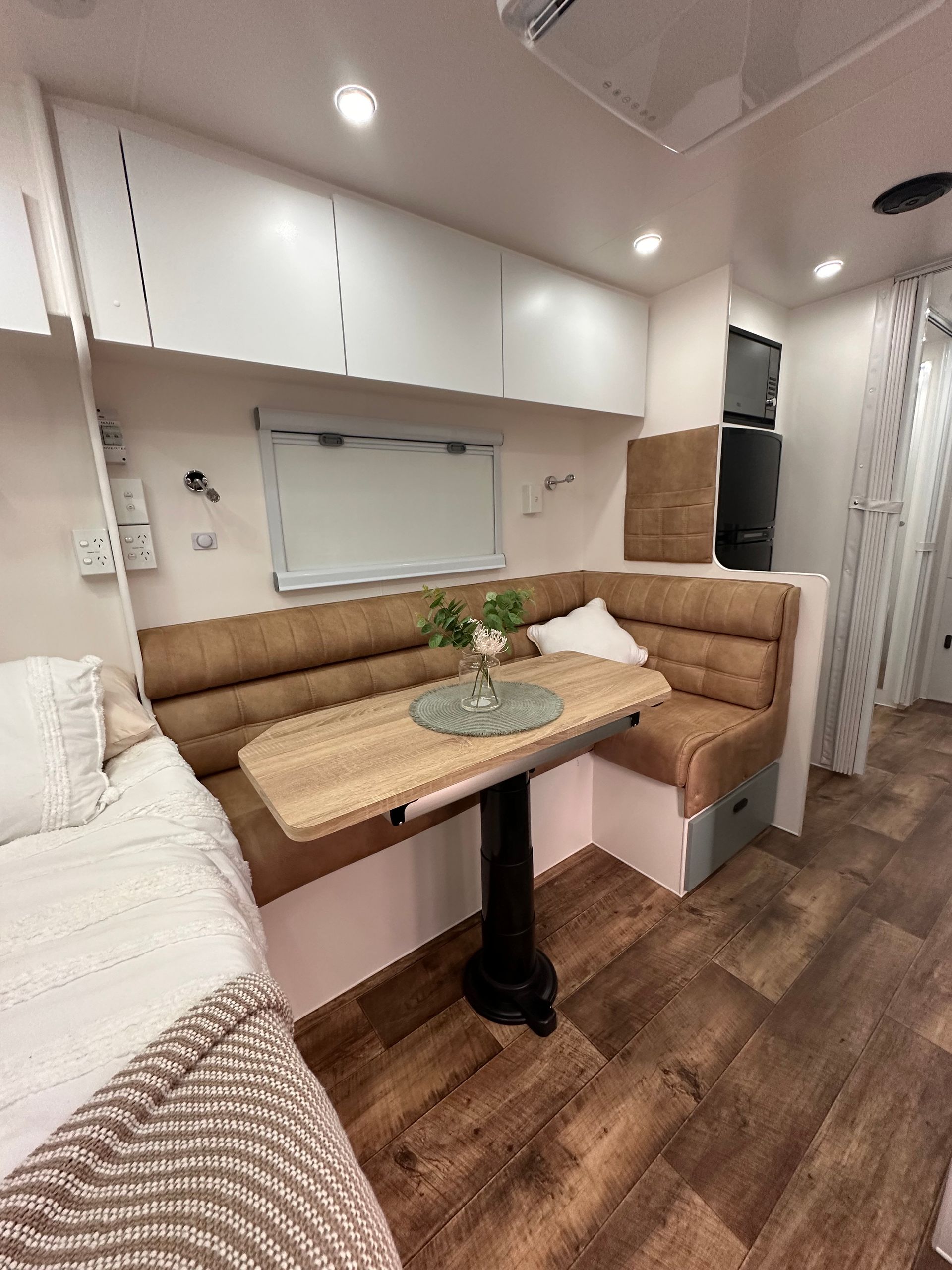

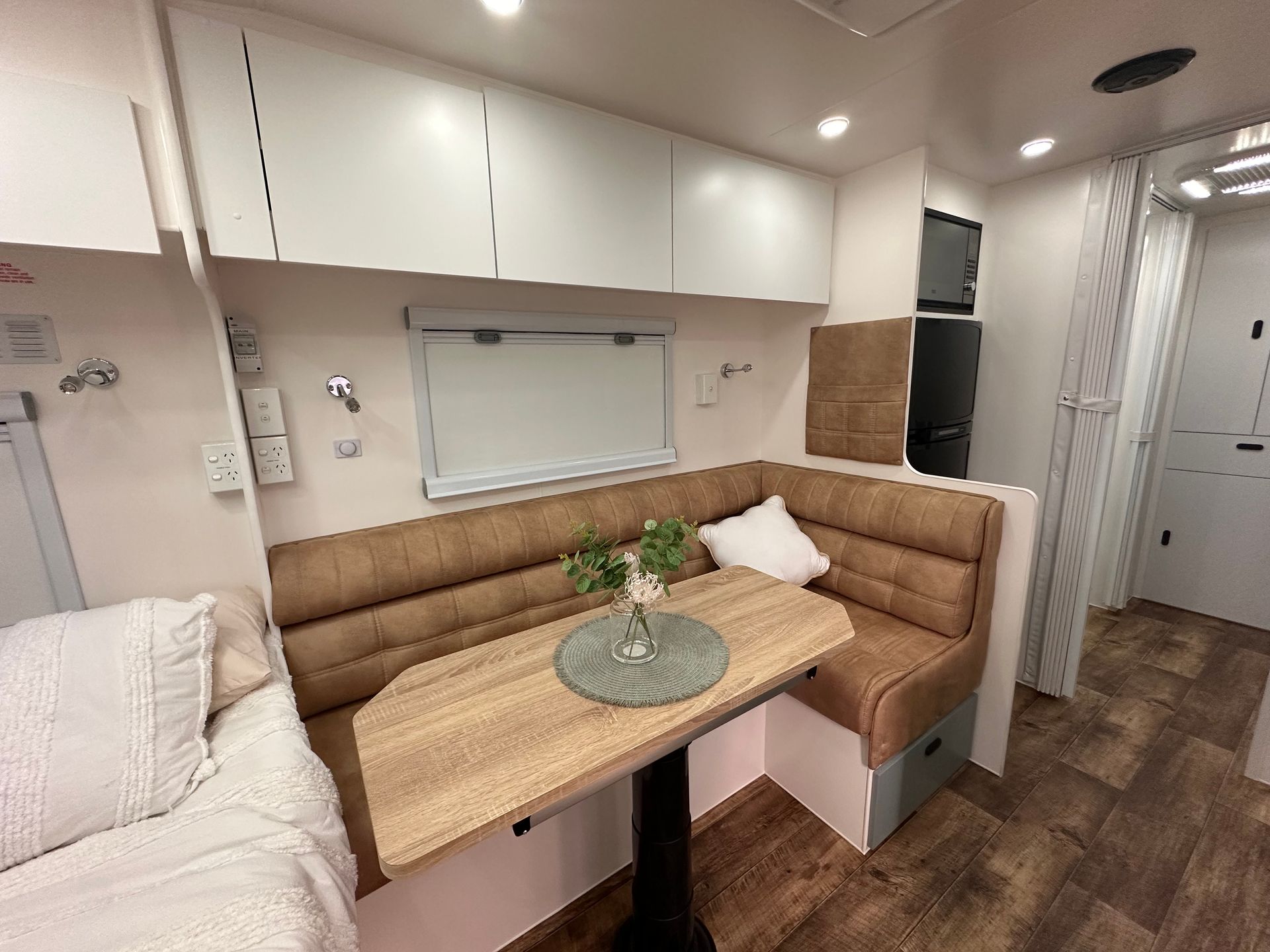

L shape lounge

Single bowl stainless steel sink

Swift 3 gas & 1 electric burner (grill & stovetop)

Hinged bench top over stove

Flush mounter range-hood

Microwave oven

24" NCE 12v HD LED TV (winegard antenna)

199 L fridge 3 way smart

DVD stereo (2 internal/external speakers)

Reverse cycle air conditioner

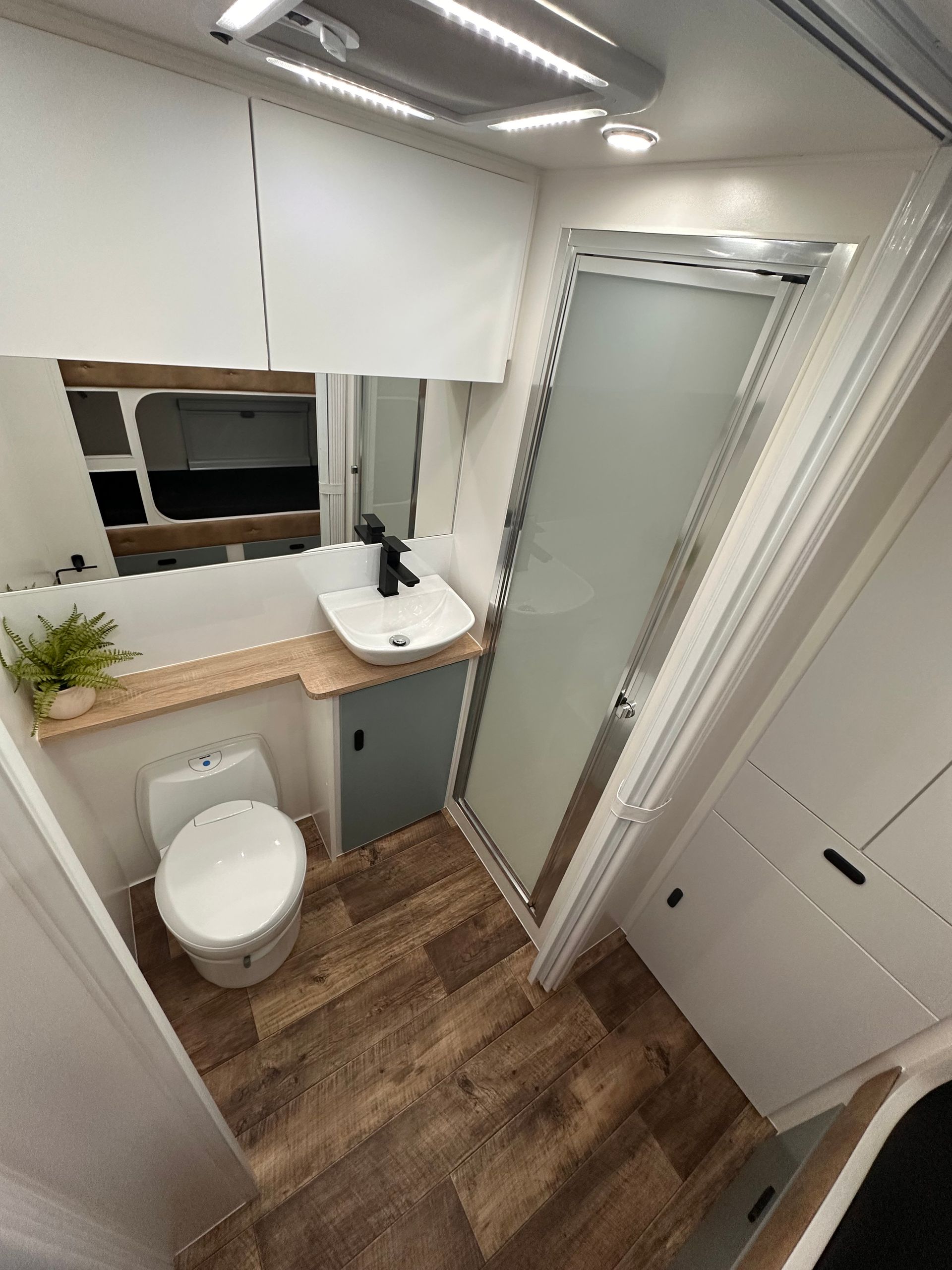

ENSUITE / LAUNDRY

Ceramic vanity basin

Linen cupboard

Separate shower

Concertina door

Thetford cassette toilet (swivel)

3.5 kg washing machine (front loader)

DOORS / WINDOWS

Triple lock entry door (security door/fly screen)

Double glazed European style windows w/block out blind & flyscreen

Roof hatches (with skylight & LED)

EXTERNAL STORAGE

Front tunnel boot (dual access)

Storage mesh on A-frame

OTHER EXTERNAL

Aussie traveller awning

Wall mounted picnic table

Aluminium double pull-out step

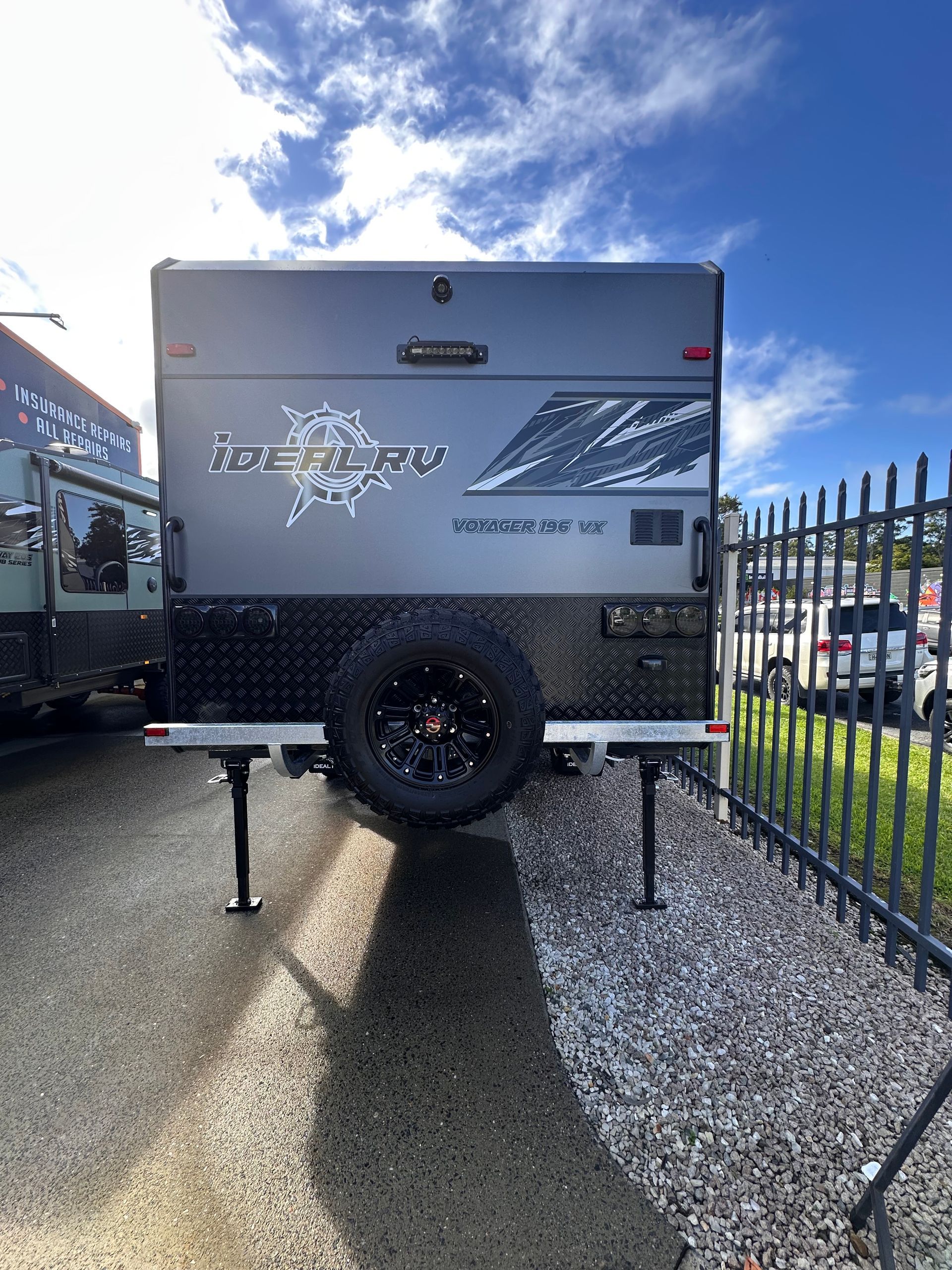

1 x spare wheel

2-arm rear bumper bar

ELECTRICAL

Projecta battery management system (lithium compatible)

2 x 100amp deep cycle batteries

30amp battery charger

2 x 210w solar panel

30amp solar regulator

Internal 240v & 12v connections

External 12v socket & 10a/240v outlet, 15a/240v inlet

LED down lights throughout interior

LED reading lights

LED door handle

LED light front & back (external)

LED light in tunnel boot

2 x LED lights for the awning

LED BBQ light

LED taillights

Front/rear/side markers & clearance lights

Trailer plug 12 pin flat w/anderson

TV antenna & coaxial points

USB ports

PLUMBING

2 x 100ltr water tanks

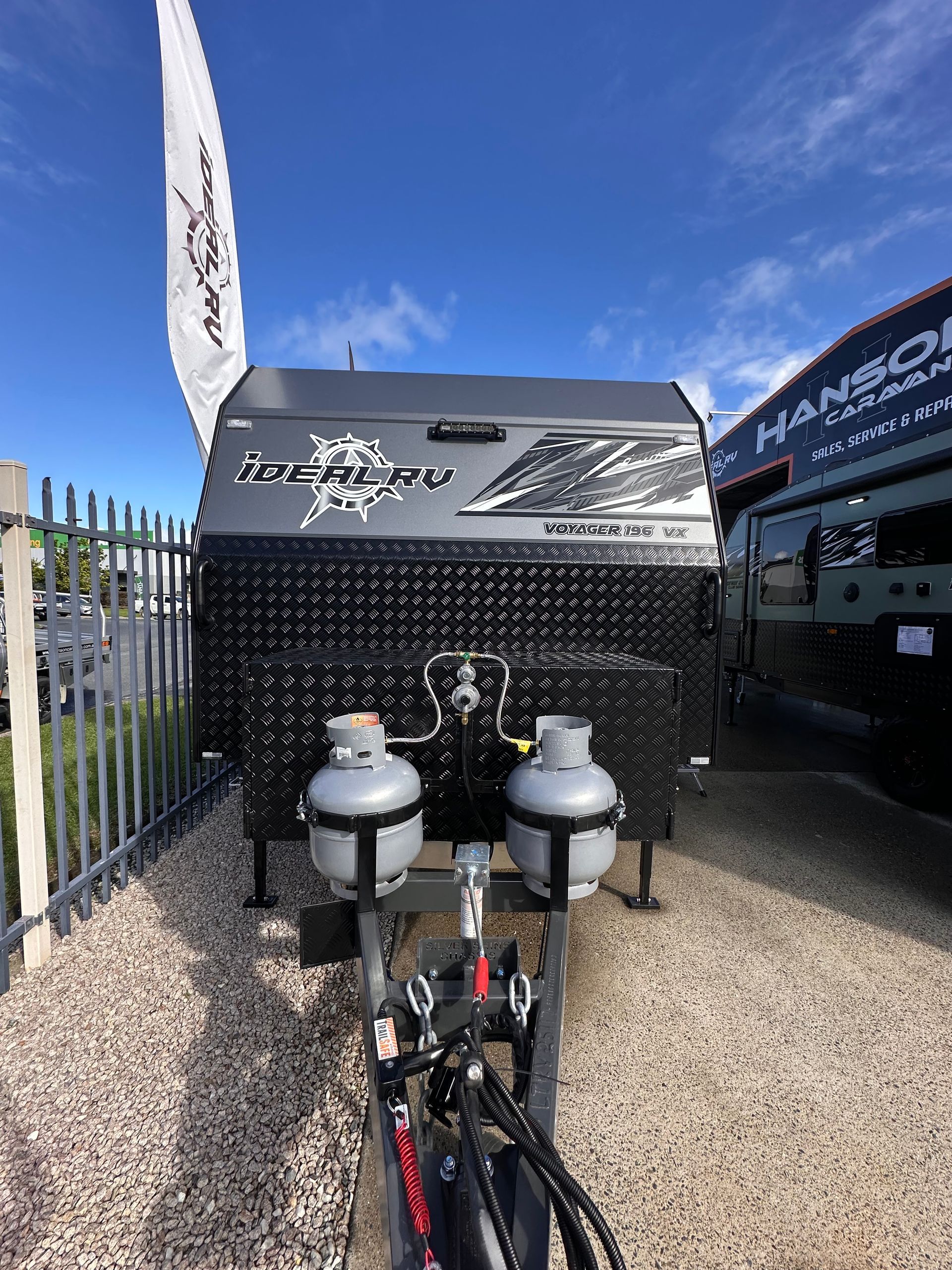

2 x 9kg gas bottles

Swift dual gas/electric hot water system

Flick mixer taps

Water gauges to all tanks

Mains pressure inlet

Lockable water fillers

12v water pump

External gas bayonet

Tap on A-frame

BENCH-TOPS & SPLASH BACKS

Cupboards available in a selection of gloss/ matte

Overhead cupboards throughout w/piano hinges

Drawer slides / steel sided runners on rollers /15 mm PVC drawers

Cupboard handles - shell lock, vogue or hidden

Gloss laminate rolled form or square bench tops

Hinged bench top over stove

Full height laminate splash backs in kitchen & en-suite

PROTECTIVE ELEMENTS

Checker plate on front approx. 1150mm (black)

Checker plate on sides approx. 600mm (black)

Checker plate on rear of the van approx. 1050mm (black)

Mud-flaps on rear

CONSTRUCTION

Composite front, back & sides

Lightweight plywood flooring – structural grade & highly water resistant

One-piece vinyl floor covering

Timber frame

Insulation to walls & roof

18mm CNC cut walls

CHASSIS/SUSPENSION

Built on flat floor

Extended A-frame (1850mm)

6" A-Frame up to axles

Axle - double

Adjustable drop-down corner leg stabilisers

Centre support drop down jack

Jockey wheel on A-frame

12" electric brakes

16″ alloy wheels

Chassis 6″ dura gal deck + raiser 6" + 2"

ON ROAD

Alko 3.5T hitch

Beam axles 1.6T rating each

SEMI OFF ROAD

DO35 hitch

3.5T semi off road suspension

FULL OFF ROAD

DO35 hitch

3.7T full off road suspension

SAFETY FEATURES

Break safe electric breakaway system

RCD protection

Grab handle on entry

Smoke alarm & fire extinguisher

External grab handles on front & back

External 12V/LED grab handle w/light

Rear camera
